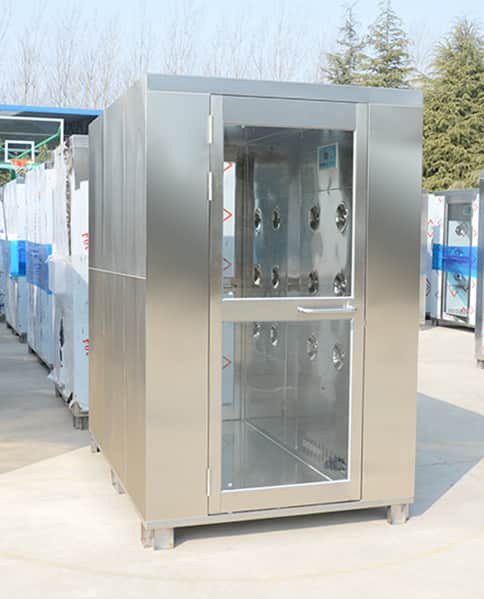

Multi Persons Air Shower

We currently have a multi persons air shower model of LP-AS-03. If there are about 80 people in the workshop, it is recommended that you can choose to use the model, so that more than 80 people can pass through in about 10 minutes. And the clean air it blows can blow away the dust carried by people or goods, effectively blocking or reducing dust sources from entering the clean area.

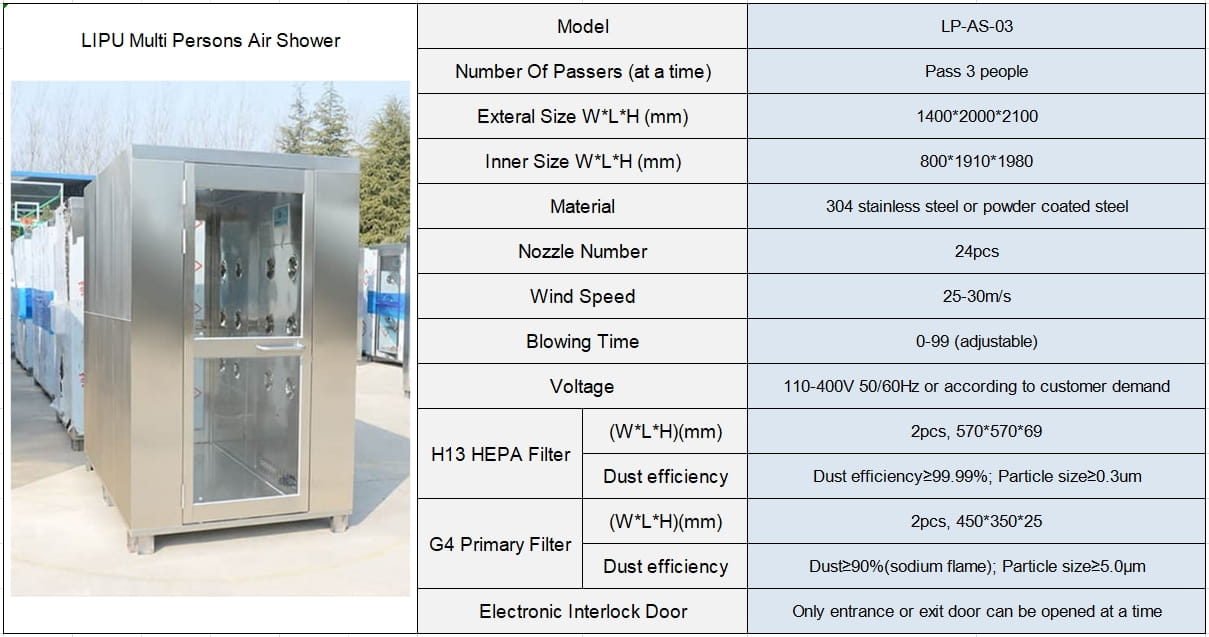

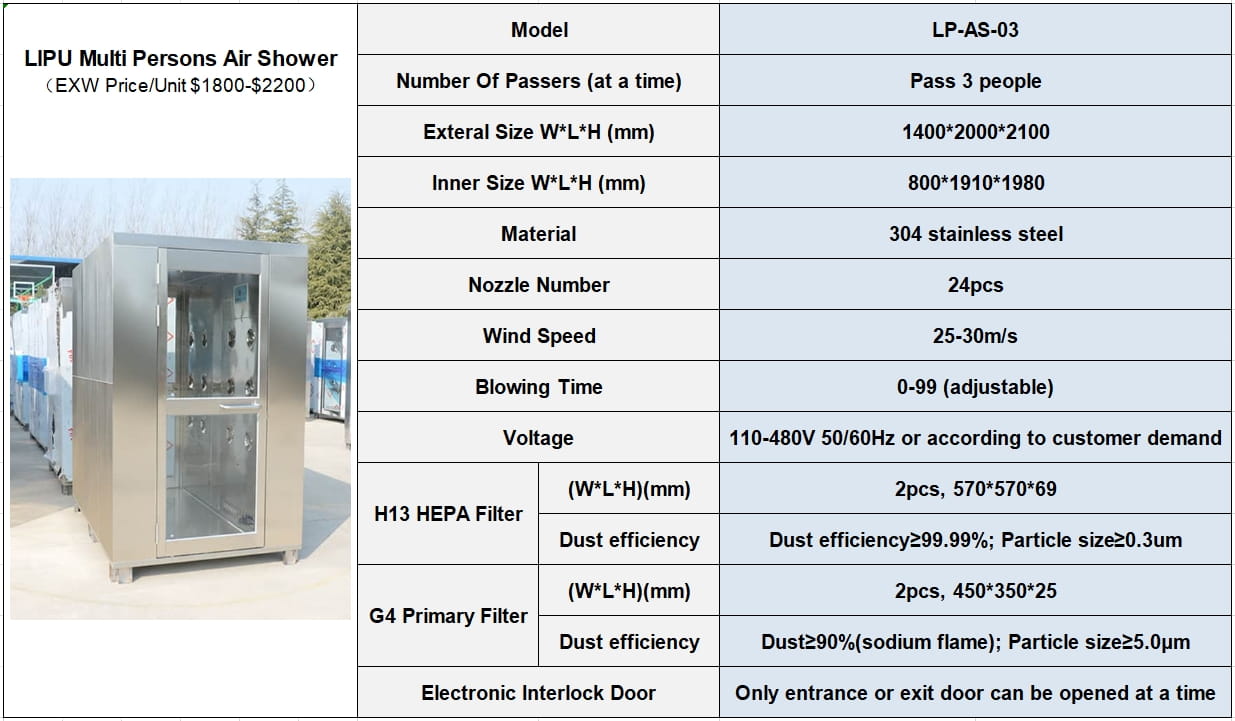

Passers(at a time): Pass 3 people

Outside Size(W*L*H): 1400*2000*2100(mm)

Inside Size(W*L*H): 800*1910*1980(mm)

Material: 304 stainless steel

Voltage: 110V-400V, 50/60Hz

Power: 2.2kw

Filter Efficiency: H13 Filter 99.99%@0.3μm

Warranty: 1 year for whole machine, 1 year for electric part and blower

Service: Manual operation and install operation paper and videos

Application scene: Microelectronics, medicine, food, chemical, automotive, printing, laboratory, production plant and other industries

GET AN QUOTE WHATSAPP

Features

● It's an airborne pollutants barrier between clean room and the worker's gowning area and prevents accidental contamination due to the unwanted or improper opening of the doors.

● It effectively removes the surface lint and particulates on the workers and their garments and completely drives them down to the breeze air circulating filtration system.

● It adopts microcomputer integrated control circuit system, and the LCD screen displays the status of the air shower; the air shower automatically senses the flow of people and blowing, and the two doors are interlocked at the same time.

● They are available in a very wide variety of sizes and shapes, such as using a combination of straight, right or left angle, and U shapes, to provide a cleaning system to meet your specific application requirements.

● The access card system, sole cleaning machine and other accessories can be installed according to customer needs, which can fully meet any customer's needs for air showers.

Details

LIPU Multi Persons Air Shower

LIPU air shower is a highly versatile local purifcation equipment instaed between cleanrooms and non-clean rooms. There are two types to choose from: cargo air shower and person air shower. The air shower is a necessary channel to enter the clean room and when people or goods enter the clean area, they need to be blown by the air shower. The clean air blown out can remove the dust carried by people and goods. As such the air shower can also effectively block or reduce dust sources from entering the clean area.

In addition, the front and rear doors of the cargo air shower or person air shower areelectricaly interlocked. Both doors cannot be opened at the same time. Only one door can beopened and closed and sealed before the other door can be opened. This can act as an airlock to prevent contamination as only the purified air enters the clean area.

Multi persons air shower.jpg

Professional Production Process

1. Focus on manufacturing air showers more than 20 years, never produce poor quality air showers.

2. Advanced production equipment, professional production process, to meet any needs of air showers.

3. Support OEM/ODM air shower customization, committed to all kinds of air shower machine.

Product Packaging And Shipping

1. Standard export wooden case packaging reduces damage during transportation and facilitates customs clearance.

2. Supporting EXW, FOB, CIF, DDP door-to-door services according to customer's requirements.

3. Complete transportation system, support multiple modes including sea, land and air transportation.

4. Provide cargo tracking numbers to facilitate timely understanding of cargo transportation status.

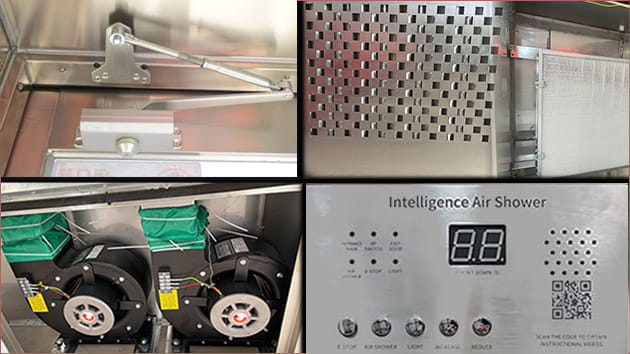

LIPU Air Shower Interior Parts

1. The door closer produce according to EN1154 standard, and upgrad with a hydraulic buffer device, which can be reused 100,000 times.

2. High-power pure copper wire fans, while ensuring stability and durability, the wind speed at the nozzles outlet is as high as 25m/s-30m/s.

3. Superfine glass fiber H13/H14 high efficiency filter, with a filtration efficiency of 99.99% or 99.997%.

4. Intelligent control panel, it can adjust the blowing time flexibly from 0-99s, and English voice broadcast the process of blowing.

One-stop Air Shower Service

1. LIPU provide consultation on product and prices, as well as on-site solutions for air shower installations.

2. LIPU provide recommendations on the parameters and functional configuration of air showers in different industries.

3. LIPU provide operating instructions (including installation), installation videos and online instructions.

4. One-year warranty for the whole machine, one year warranty for the air shower fan.

LIPU Air Shower Manufacturer Production Display

▶ We provide professional air shower design, which complies with GMP and EU CE standard(free of charge)

▶ We provide professional advice( free of charge)to ensure better functionality and cost-effectiveness of your air shower.

▶ We have strict quality control system to ensure the quality of your product, and we will inspect and test all products carefully to ensure no damage and lost before delivery.

▶ Customization service is available, OEM/ODM business is appreciated.

▶ We provide professional international shipping and declaration services.

▶ We provide intimate pre-sales and after-sales service.

▶ We have a professional after-sales department and installation team.
